Shock Cage

The shock cage is a complex 3D forged section that is the foundation of the KS2 platform. By forging this as one large piece per side rather than simply machining from billet or making in multiple sections, the final design is significantly stronger, lighter and stiffer to create a solid foundation for the whole frame. It might be a far more expensive and difficult option than most brands use… but it makes a huge difference to ride quality, and we always put the performance of our products above all else.

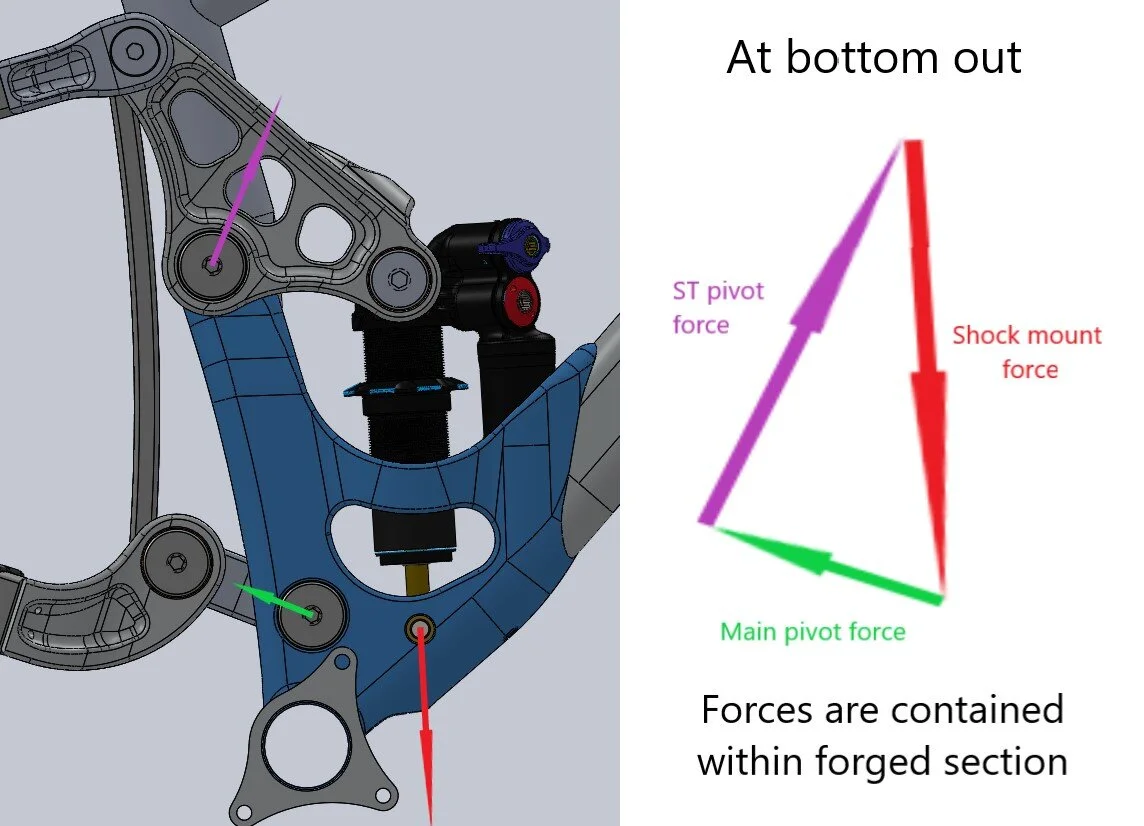

Load isolation - The 3D forged shock 7005 T6 cage of the KS2 design contains all the rear suspension loads that are amplified by leverage ratios within the forged section. Effectively equalizing these loads within the cage and isolating them from rest of the frame. This results in a better front triangle with all high loads contained by the strongest section.

Low center of gravity - Mounting the shock low down in the shock cage results in an incredibly low center of gravity. Making the bike more stable when things get rough, easier to lean over into corners to carry more speed and helps initiate turns faster.

Found on Rune V3 and Titan
